On a pumped system the alarm is the warning and the pump is the failure. Most callouts here are a stuck float or a fouled impeller rather than a dead motor, and the difference is worth finding before ordering parts.
In pump and float replacement, the float usually failed
A float switch is a small sealed device on a cable. It gets fouled by grease, tangled with a rag, or drifts on its tether until it no longer switches where it should. Any of those produces the same symptom as a dead pump: a chamber that fills and an alarm that sounds, which is why these calls start at the panel rather than at a parts counter.
Impeller fouling is next. A rag ball wrapped around the impeller lets the motor run while moving almost no water, which is worse than a clean failure because nothing announces it until the level climbs. Both are found by drawing the chamber down, which is part of lift station pumping.
Actual motor failure does happen, usually after years of short-cycling caused by one of the above. Replacing the pump without fixing the cause buys a shorter life on the new one, which is why the chamber gets cleared and the grease side checked where a kitchen feeds it.
Chamber drawn down
How it works
How a pump job runs

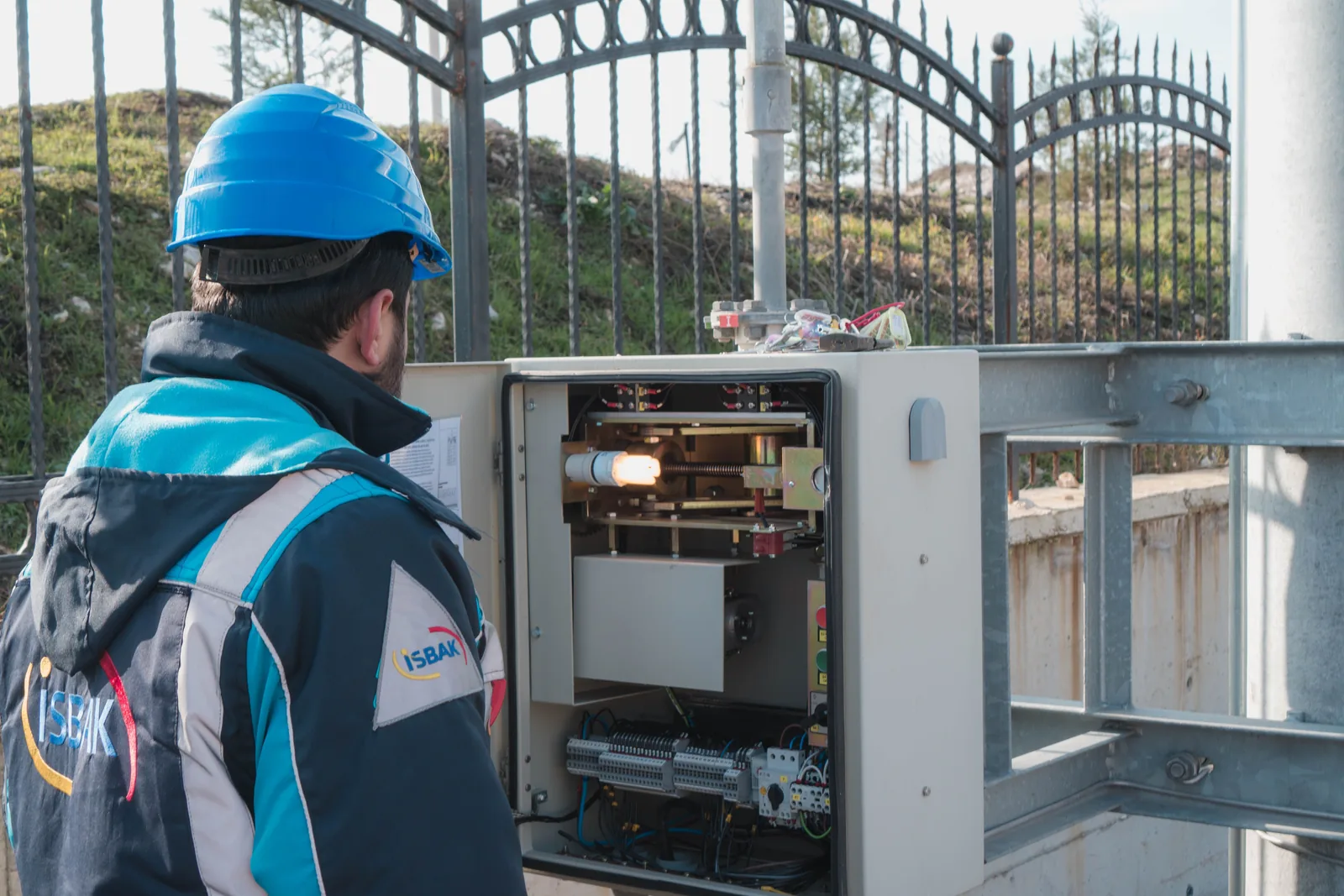

Read the panel
Run hours, cycle count and fault history first, because the panel usually narrows the problem before anything is lifted.
Draw down and inspect
Chamber emptied, floats and cables cleared of grease and rag, and the impeller checked for fouling.
Fit what actually failed
A float, a cable, a pump or a panel component. Parts are ordered against a diagnosis, not a guess.
Test through the range
Each float run through its cycle, the pump watched under load, and the high-level alarm triggered and reset.
The alarm is the part worth protecting
A working alarm turns a flood into a phone call
Pumps are consumables. What determines whether a failure is an inconvenience or a flood is whether the high-level alarm is enabled, audible and connected to somebody who will act on it. On an aerobic unit it is a permit condition as well.
Muted panels are the most common finding on a first visit to a neglected system, usually because the alarm went off once at 3am and somebody hit the silence button permanently. Silencing the current alarm is fine; disabling the circuit is not, and it is why the alarm is triggered on every visit rather than assumed to work.
On commercial sites that alarm carries more weight still, and the schedule that protects it is set out on lift station service. Domestic systems with pumps belong on a service contract for the same reason.
Before parts orderedDiagnosed
Triggered, not assumedAlarm
Cleared, not just the partCause
Repair services
Other repair work
The components that fail, in the order we check them.
Reduce water use immediately and call. The alarm means the chamber is filling faster than it is emptying, and every load of laundry shortens the time you have.
Silencing the current alert is fine and that is what the button is for. Disabling the alarm circuit is not, because the next failure then arrives with no warning at all.
Years, and the number depends far more on what it is pumping and how often it cycles than on the badge. Short-cycling caused by a drifted float is what kills most of them early.
That is usually a fouled impeller or a blocked discharge, not a dead motor. It is found by drawing the chamber down and looking.
It needs to match the duty, meaning the flow and head the system was designed around. Fitting whatever is in stock is how systems end up short-cycling.
A wet well is a confined space with dangerous gases and live electrical equipment in it. This is not a safe job to attempt alone, whatever your trade background.
